Premium Cladding Profile Options |
|
| |
 |
|
| |
 |
|
| PROFILE NAMES |
RECOMMENDED
ORIENTATION |
SECRET
FIXING |

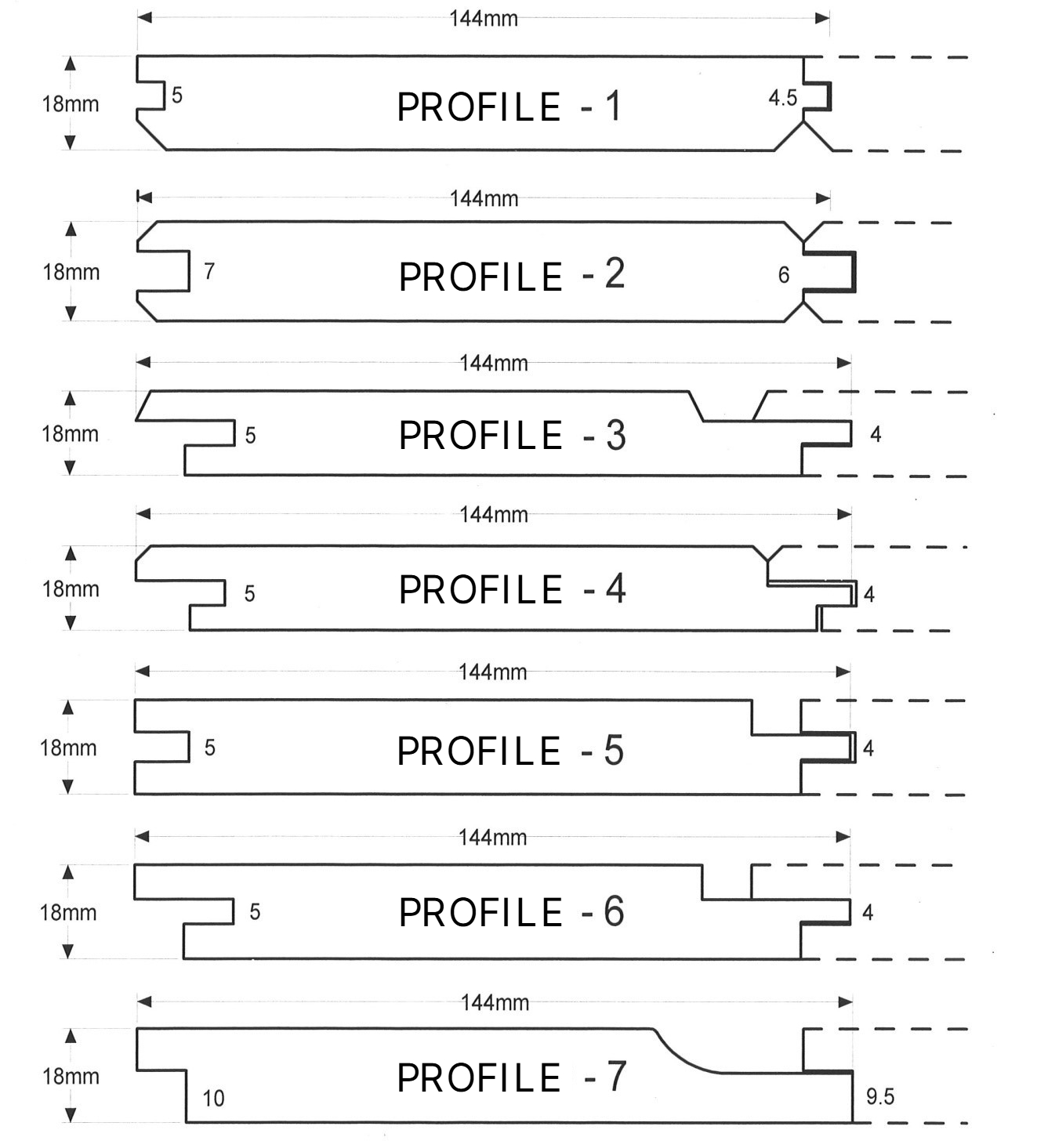

| 1. Tongue & Groove V One Side (T&GV) |
Horizontal (H) or Vertical (V) |
No |
| 2. Tongue & Groove V Two Sides (T&GV2S) |
H or V |
No |
| 3. Shadow Gap With Shoulder Bevel |
H or V |
Yes |
| 4. Long Tongue & Groove V |
H or V |
Yes |
| 5. Tongue & Groove Shadow Gap |
V |
No |
| 6. Long Tongue Shadow Gap |
V |
Yes |
| 7. Shiplap Halflap |
H or V |
Yes |

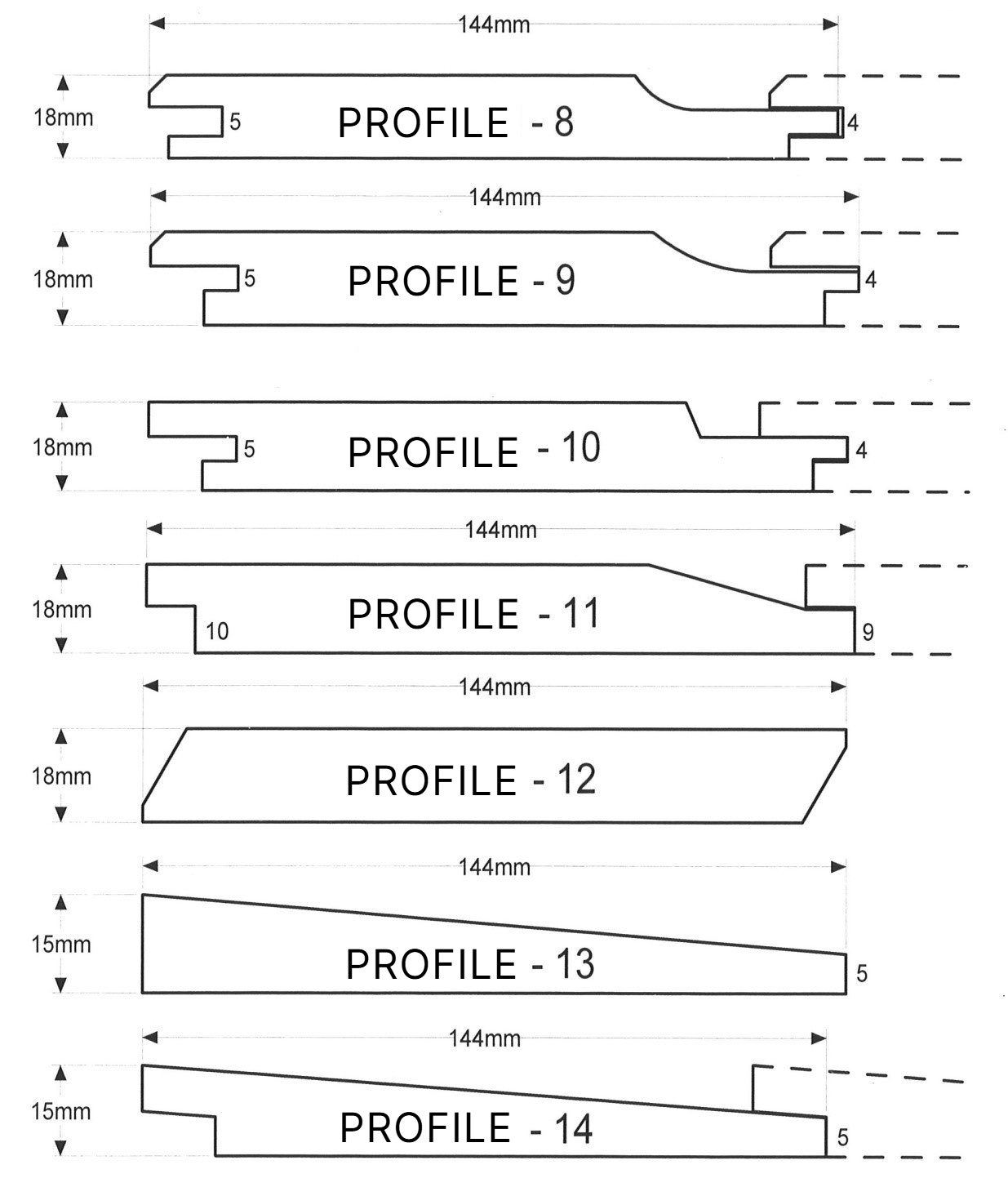

| 8. Tongue & Groove Shiplap |
H or V |
No |
| 9. Long Tongue & Groove Shiplap |
H or V |
Yes |
| 10. Long Tongue Shadow Gap With Shoulder Bevel |
H or V |
Yes |
| 11. Halflap Chamfered |
H or V |
Yes |
| 12. Rhombus With Splayed Gap |
H |
No |
| 13. Featheredge (planed) |
H or V |
No |
| 14. Featheredge (Planed) With Rebate |
H or V |
Yes |
| |
|
|
| |
|
|
|
